SH-ESP32 NMEA 2000 Gateway Selection Guide

SH-ESP32 can be configured to perform as an Actisense NGT-1 compatible NMEA 2000 USB gateway. The steps required are provided in the SH-ESP32 NMEA 2000 Gateway Tutorial. Follow this selection guide to pick necessary components for this use case.

The tutorial relies heavily on the NMEA 2000 Gateway example code. Please note that even though a lot of effort has gone into ensuring the correct function of the software, it is only provided as an example, and we won't be able to provide any individual support for its functionality. Any such questions should be presented in the Hat Labs discussion forum.

First, you need an SH-ESP32 board:

The standard SH-ESP32 Enclosure is perfect for this application:

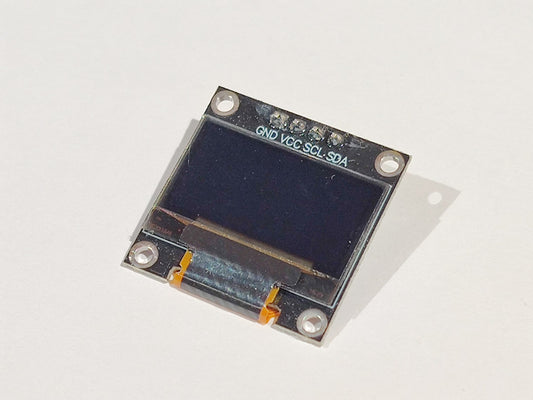

A display is not essential but still a nice addition:

For this use case, a Micro USB panel connector and an NMEA 2000 panel connector are needed.

Finally, you might want to add a drop cable and a T-connector to connect the gateway to the NMEA 2000 network:

Congratulations! By now, you should have a fully configured NMEA 2000 Gateway device order in your shopping cart!
