Raspberry Pi

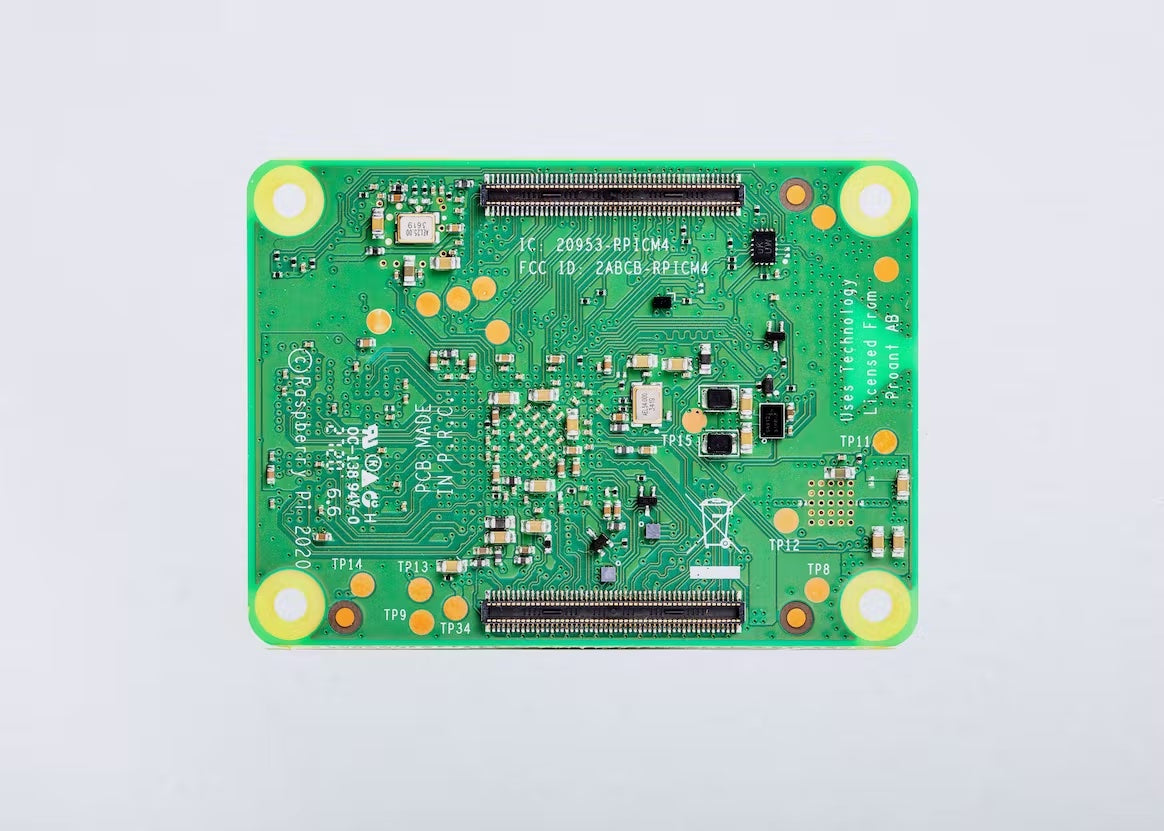

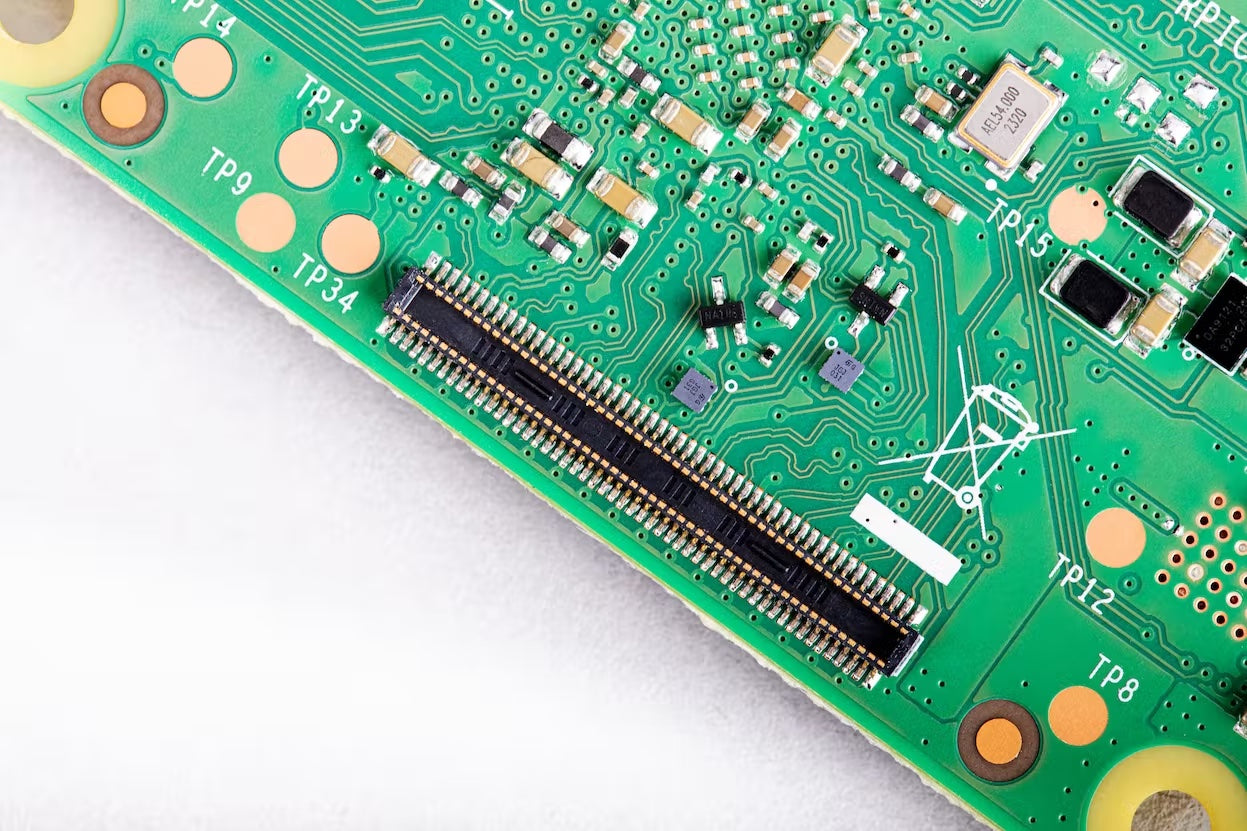

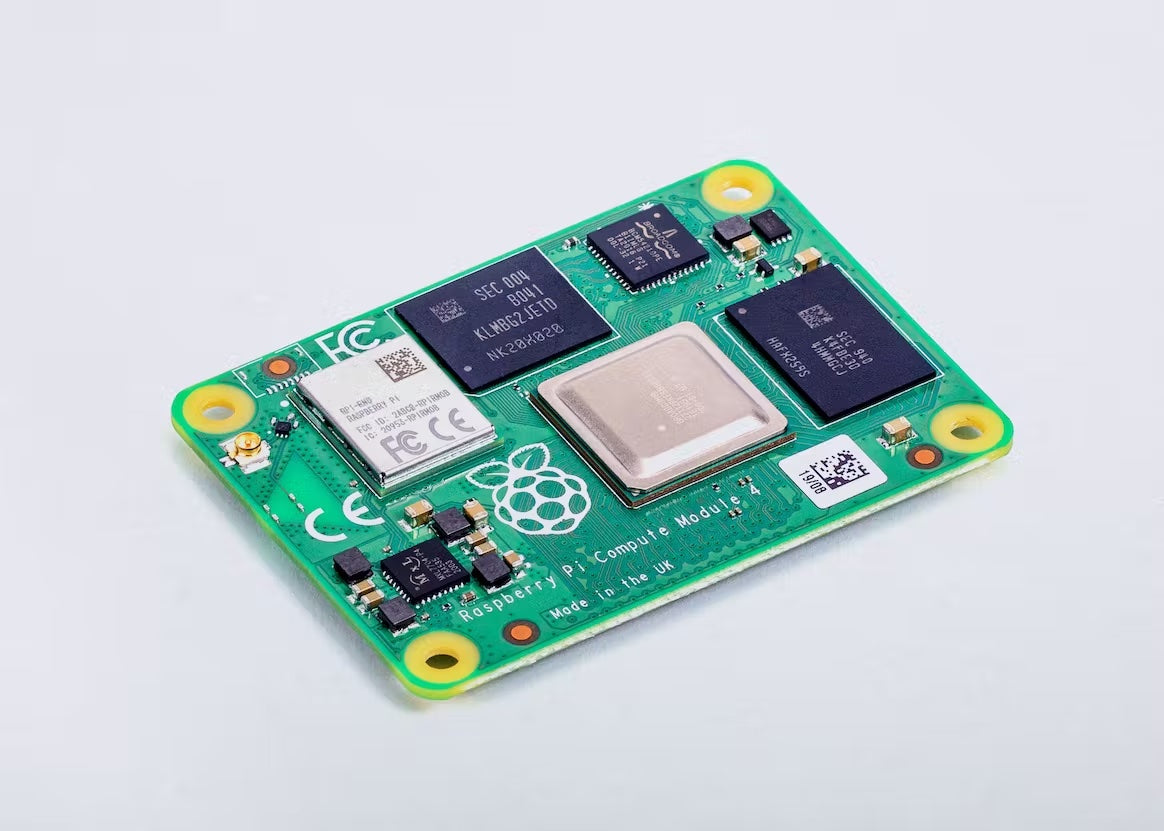

Raspberry Pi Compute Module 4 (CM4)

Raspberry Pi Compute Module 4 (CM4)

Regular price 121,27 EUR
Regular price Sale price 121,27 EUR
Save Sold out
Tax included. Shipping calculated at checkout.
Variant

Get the CM4 together with a CM4 Base Board to implement a reliable, fast and low-power embedded computer for the most demanding use cases!

The power of Raspberry Pi 4 in a compact form factor for deeply embedded applications. Raspberry Pi Compute Module 4 incorporates a quad-core ARM Cortex-A72 processor, dual video output, and a wide selection of other interfaces. Available in 32 variants, with a range of RAM and eMMC Flash options, and with or without wireless connectivity.

The lite version, without an internal eMMC, is particularly useful when combined with an M.2 SSD hard disk.

Specification

  • Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz (same as Raspberry Pi 4B)
  • H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
  • OpenGL ES 3.1, Vulkan 1.0
  • Options for 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on variant)
  • Options for 0GB ("Lite"), 8GB, 16GB or 32GB eMMC Flash memory (depending on variant)
  • Option for fully certified radio module:
    2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless;
    Bluetooth 5.0, BLE;
    On-board electronic switch to select either external or PCB trace antenna

See the manufacturer product pages for more information.
