SP13 Power Pigtail Connector Pair

A two-pin SP13 connector with a female plug and a male panel connector. Suitable to be used as a power connector for SH-ESP32. The panel connector has a pigtail for easier and faster installation: just trim the wires to the correct length, strip and connect to a screw terminal!

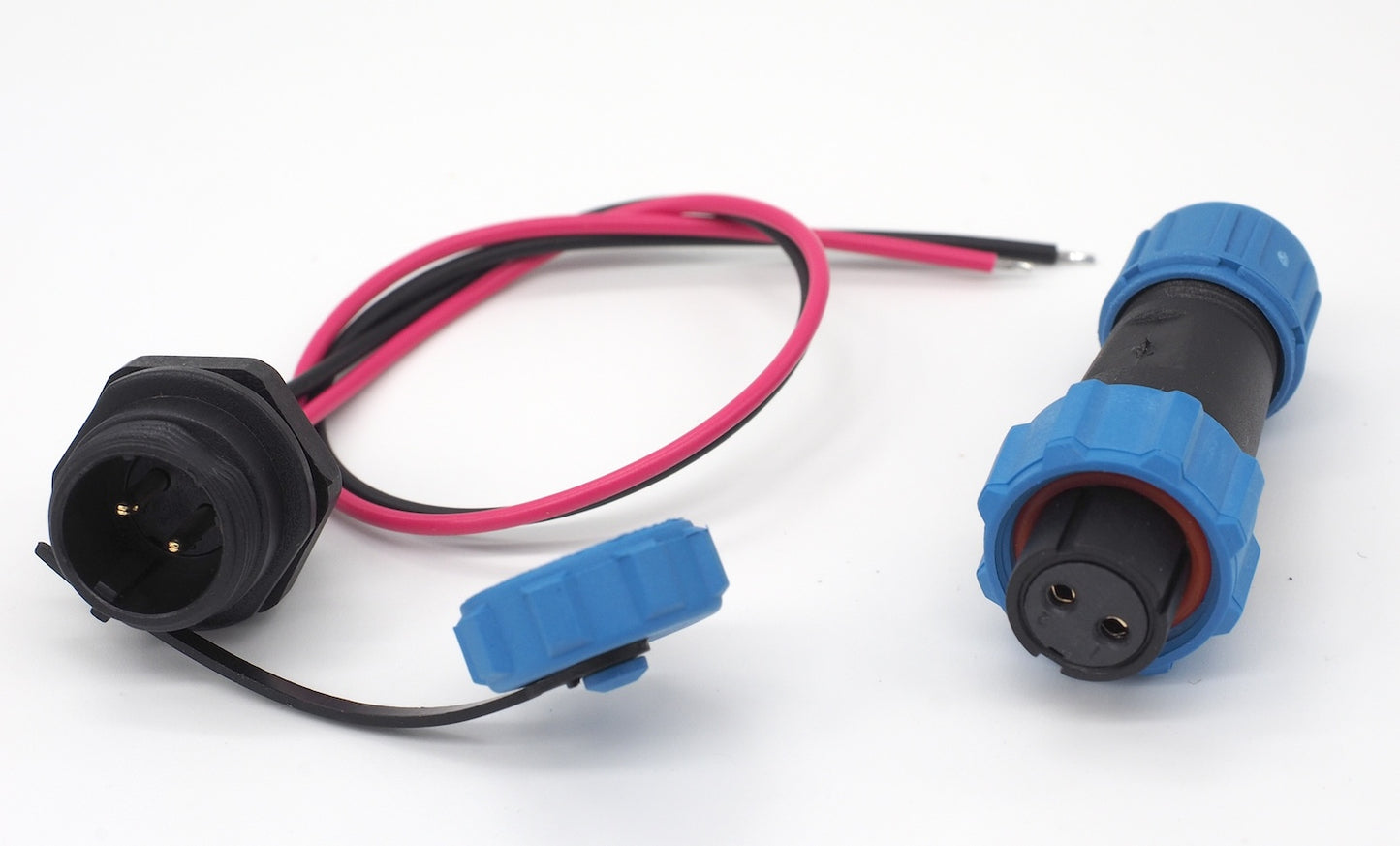

Contents:

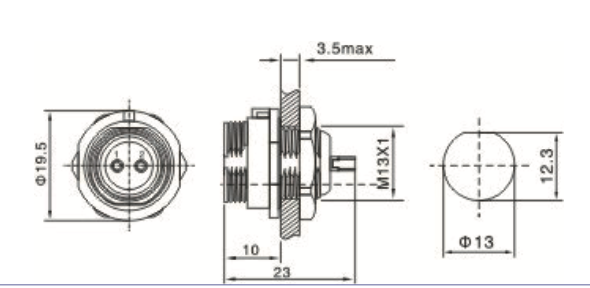

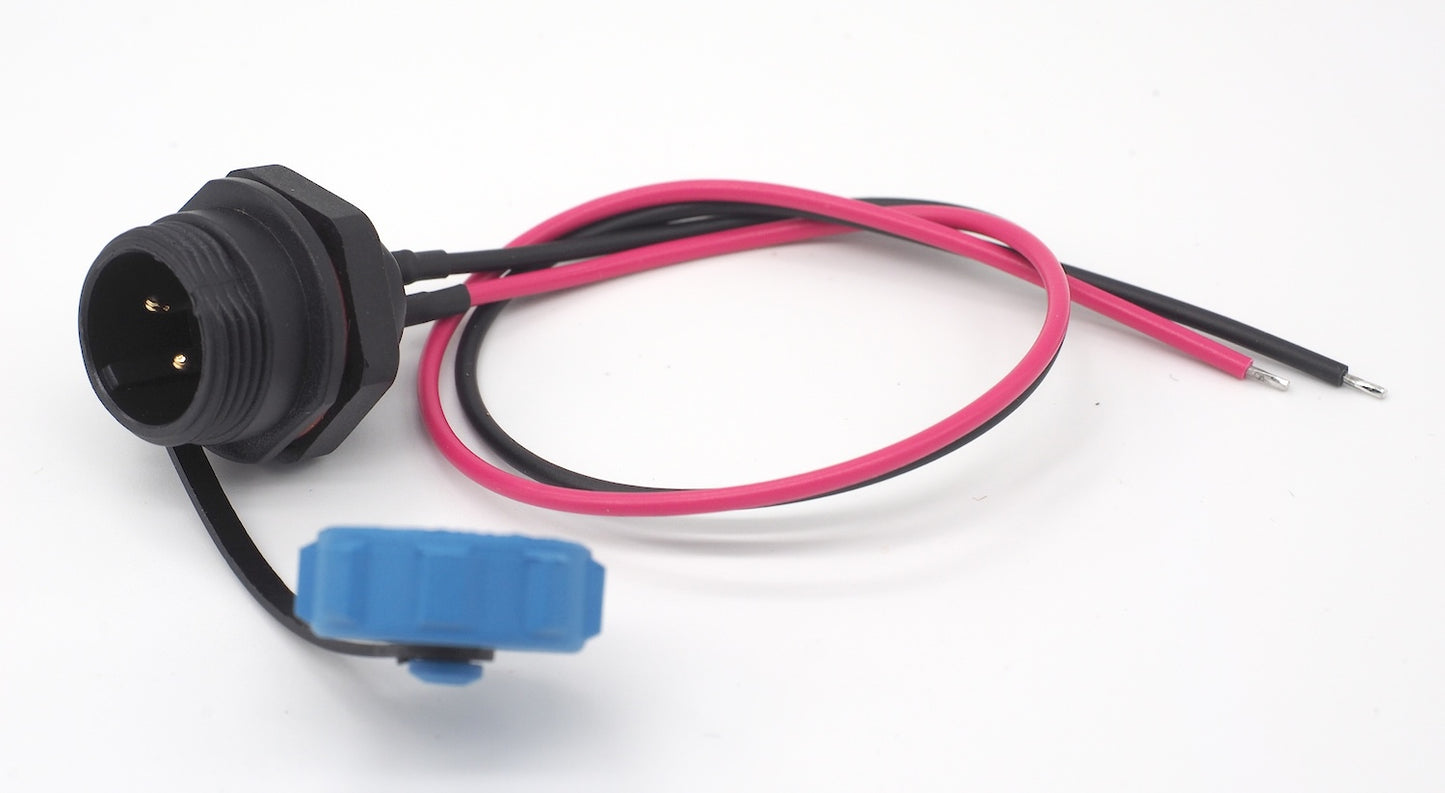

• One pigtail panel connector with a back nut (male)

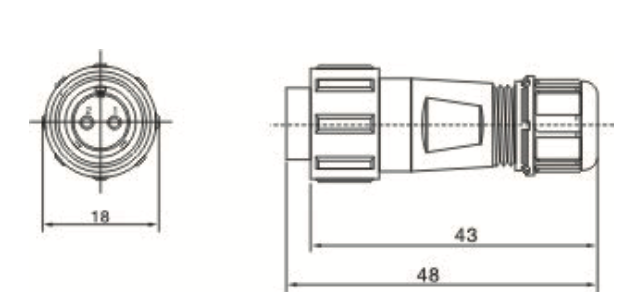

• One cable plug (female)

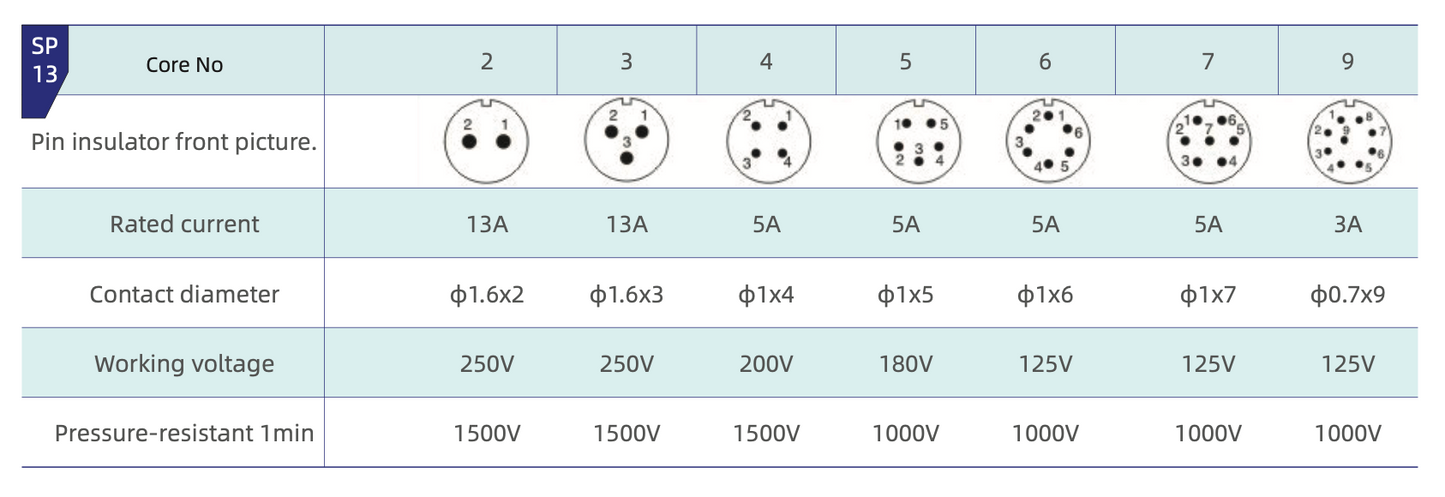

Specifications:

• Ingress Protection rating: IP68
• Contact diameter: 2×1.6 mm
• Rated current: 13 A
• Cable range: 4-6.5 mm

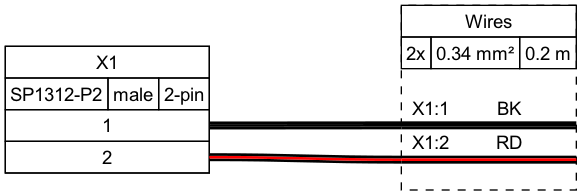

• Pigtail wire length: 20 cm
• Pigtail wire gauge: 22 AWG (0.34 mm2)
