Waveshare 2-Channel Isolated CAN HAT for Raspberry Pi: Ideal for NMEA 2000 Compatibility

Waveshare 2-Channel Isolated CAN HAT for Raspberry Pi: Ideal for NMEA 2000 Compatibility

Regular price 32,24 EUR
Regular price Sale price 32,24 EUR
Save Sold out
Tax included. Shipping calculated at checkout.

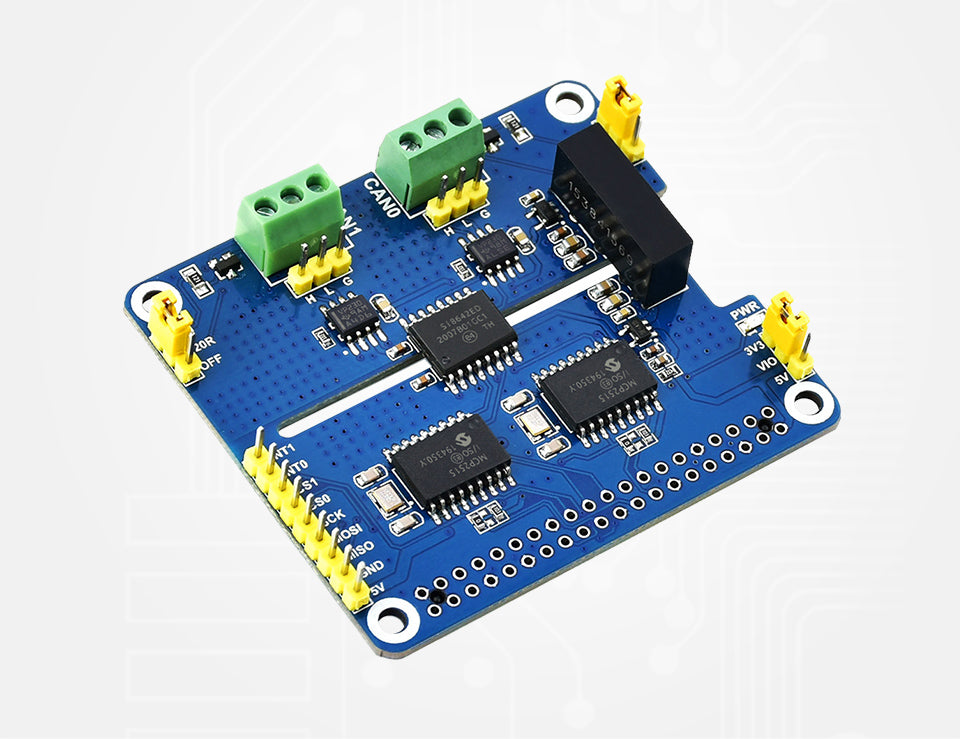

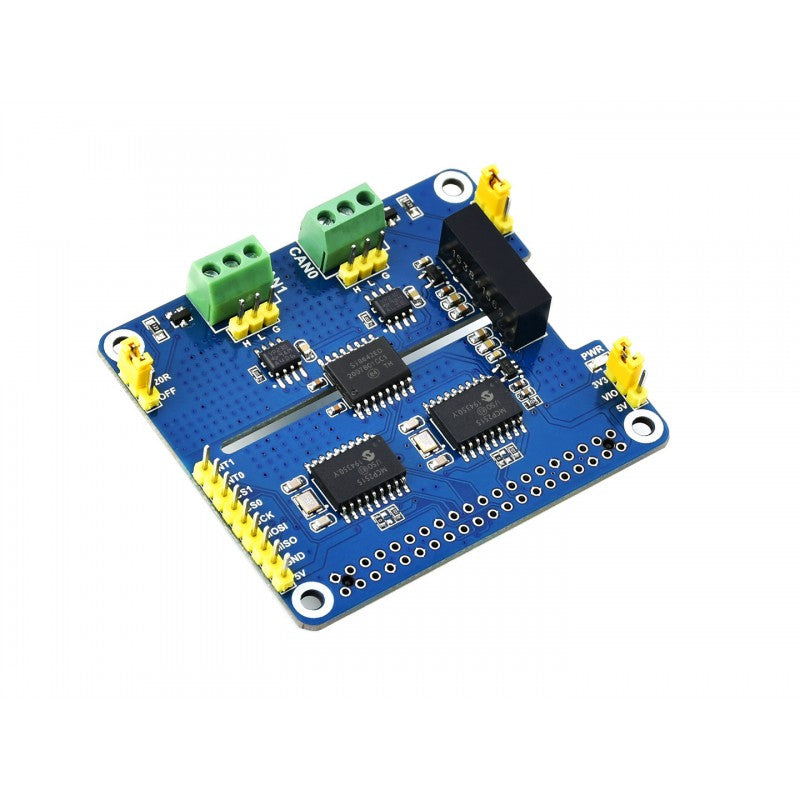

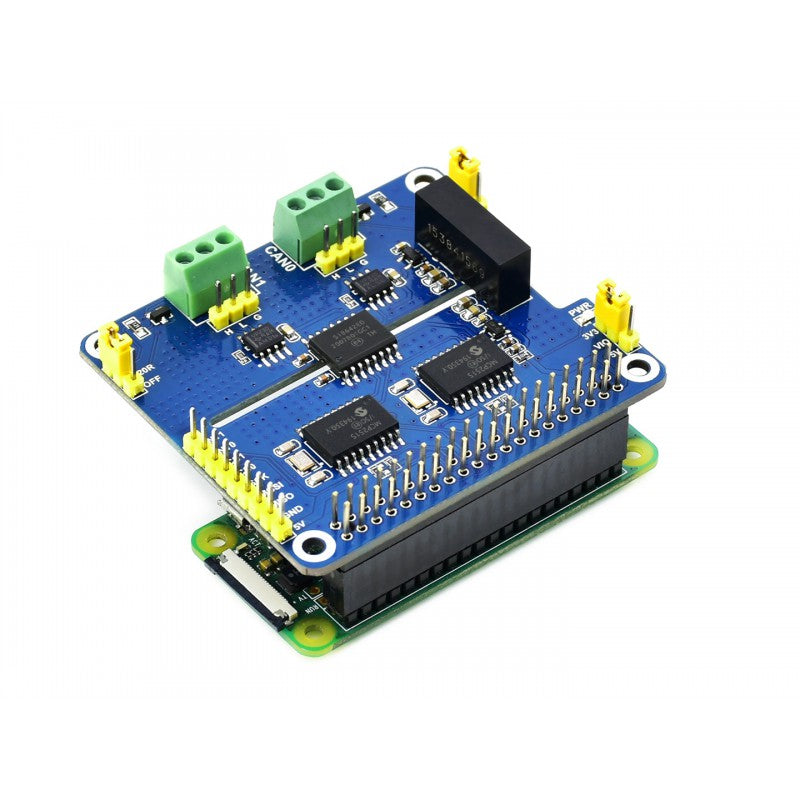

Upgrade your Raspberry Pi project with the Waveshare 2-Channel Isolated CAN HAT, providing the computer with an NMEA 2000 interface. This expansion HAT provides a reliable and secure connection to CAN Bus networks and features multiple onboard protection circuits to ensure stable and safe communication.

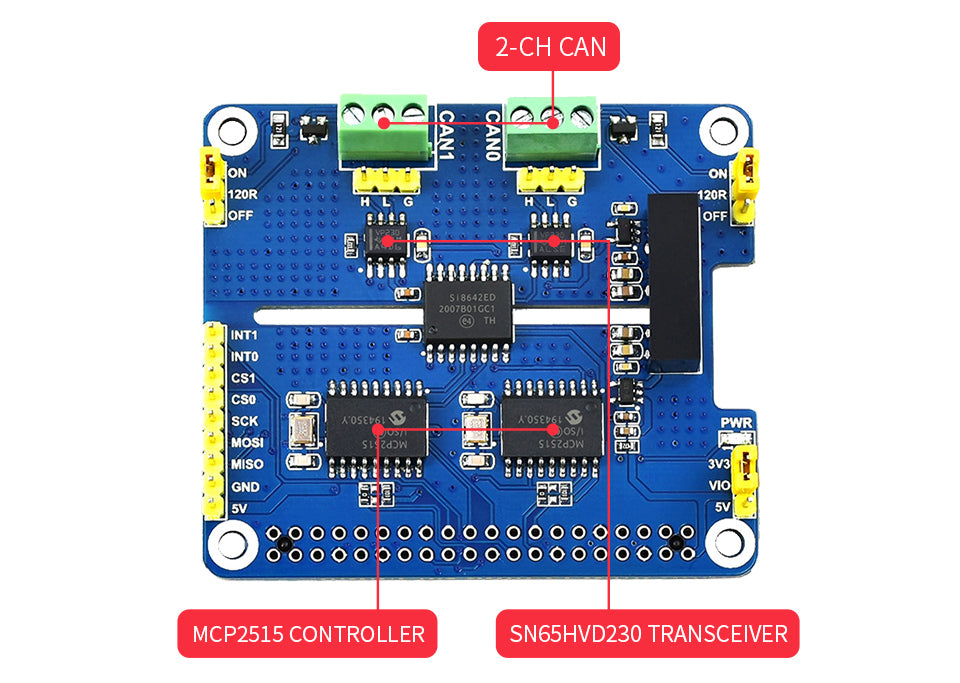

  • MCP2515 CAN controller and SN65HVD230 CAN transceiver

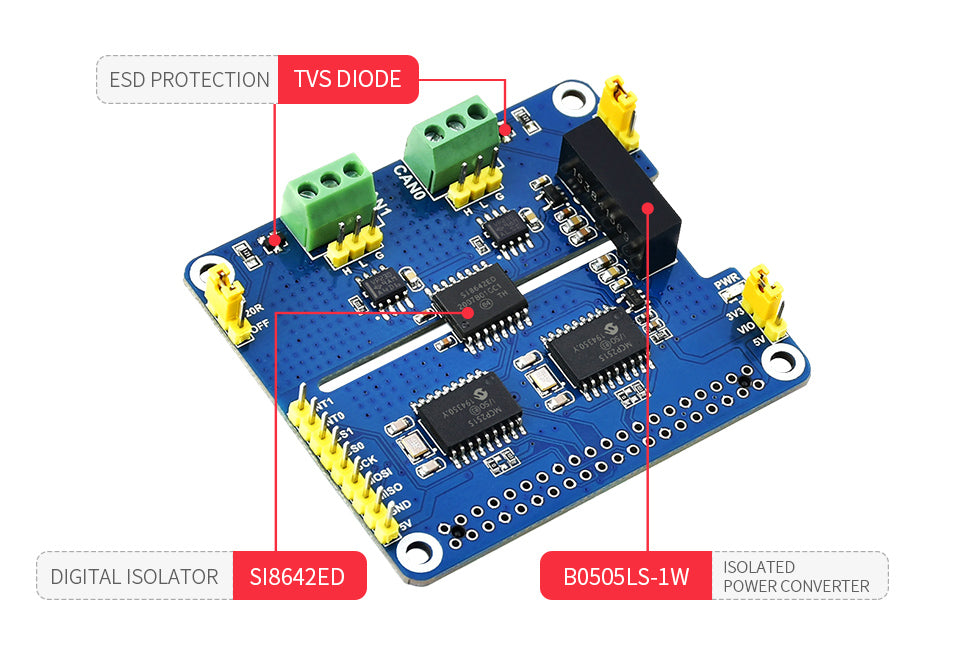

  • Power and signal isolation for enhanced safety and stability
  • TVS (Transient Voltage Suppressor) diode for ESD and transient peak voltage protection

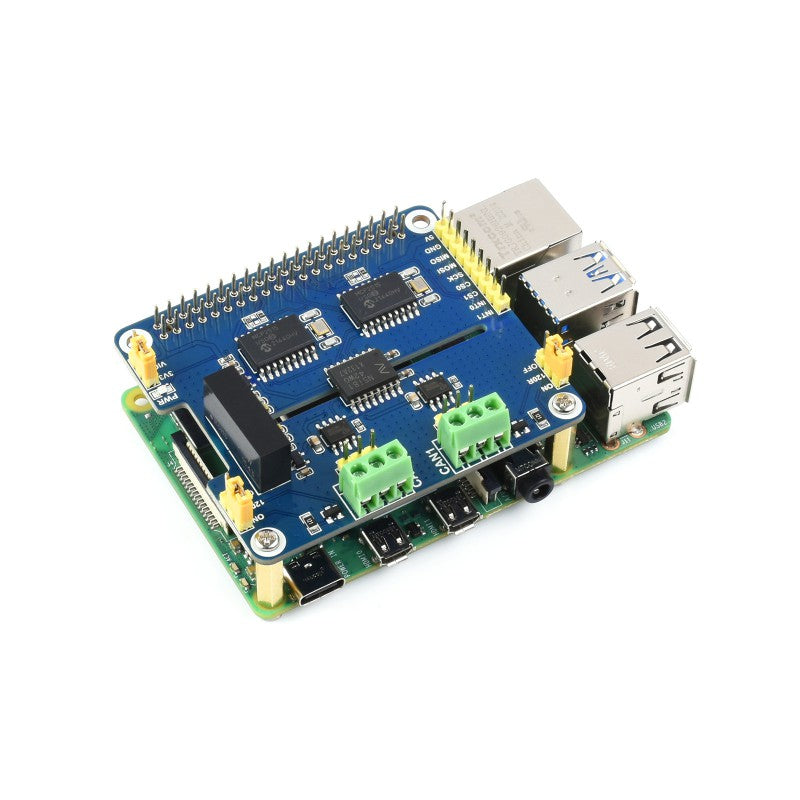

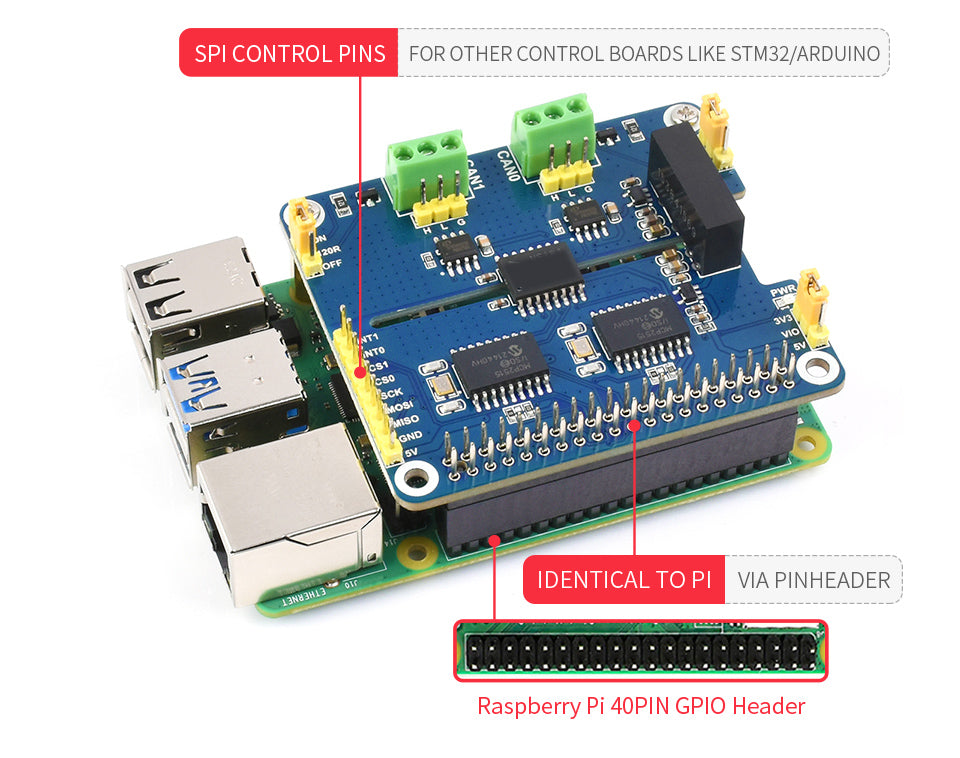

  • Compatible with Raspberry Pi series boards with a standard 40-pin GPIO header

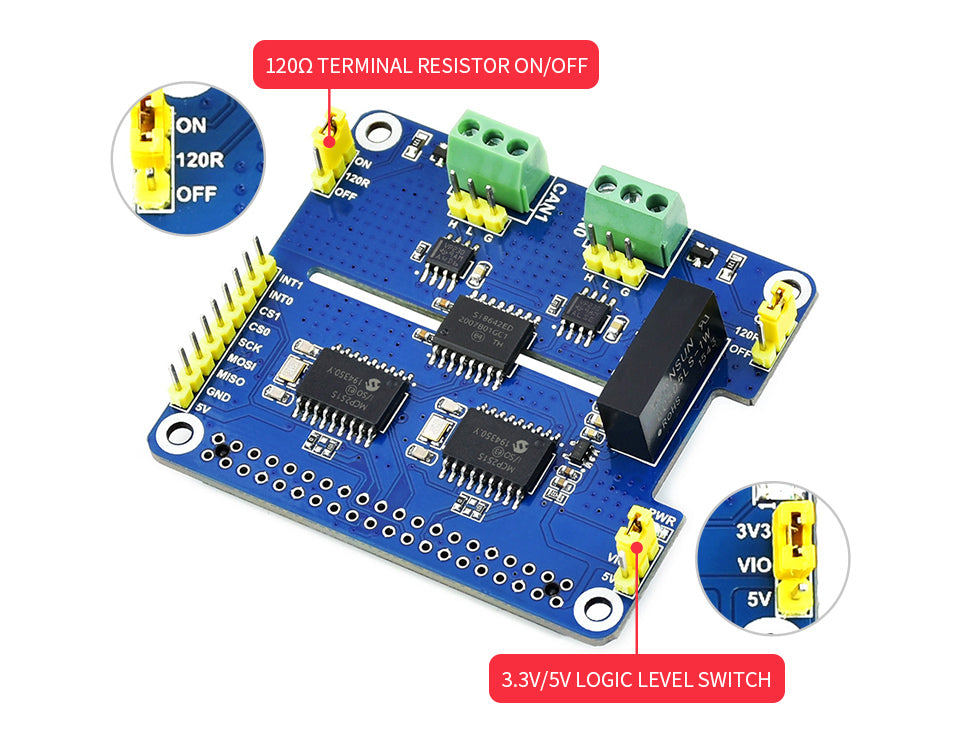

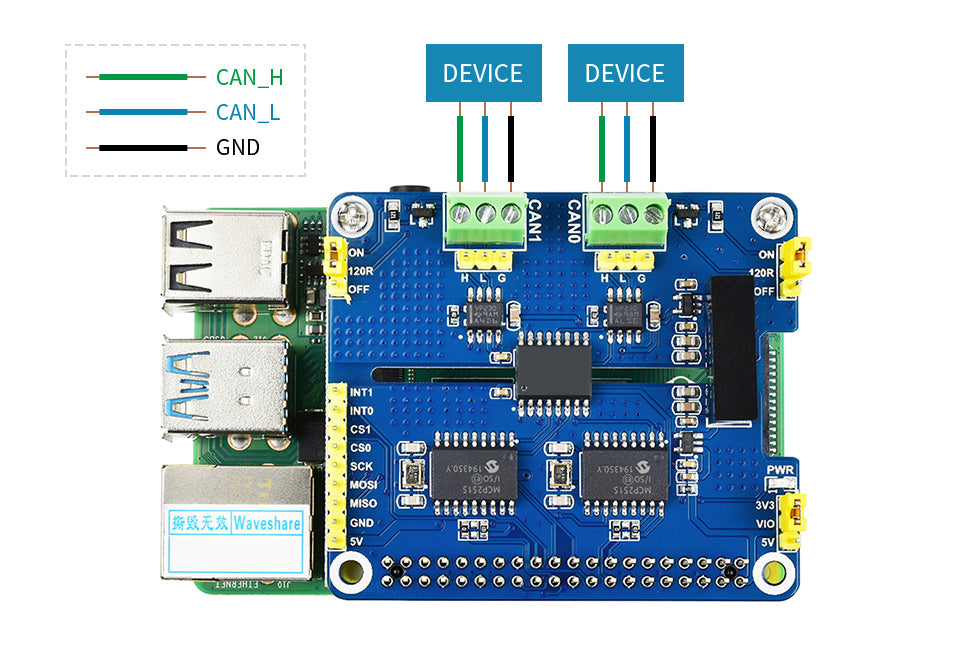

  • Easy-to-use jumpers to select 3.3V/5V operating voltage and enable/disable 120Ω terminal resistor

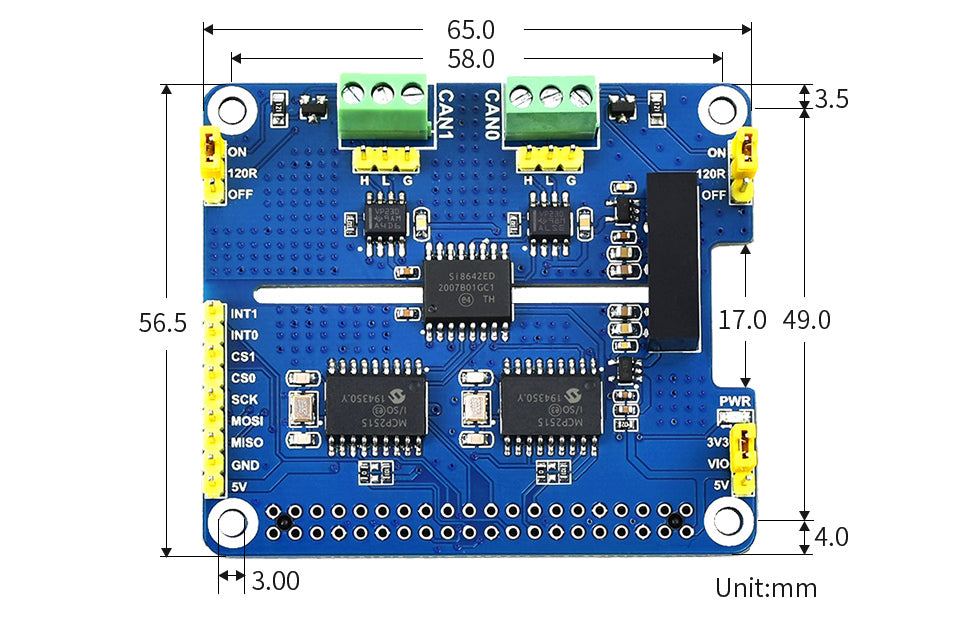

  • Dimensions: 65 x 56.5 mm (2.56 x 2.22 inches)

The 2-Channel Isolated CAN HAT is designed for use with Raspberry Pi and features a dual-chip solution with MCP2515 and SN65HVD230 for 2-channel CAN communication. The integrated power isolation provides a stable isolated voltage, requiring no additional power supply for the isolated terminal. The onboard digital isolator ensures secure, stable, and interference-free communication.

Please note: For NMEA 2000 compatibility, only one channel should be used due to isolation limitations.

With the Waveshare 2-Channel Isolated CAN HAT, you can easily provide an isolated and compliant NMEA 2000 interface for your Raspberry Pi projects, including SH-RPi and our range of enclosures.

For more technical information and resources, please visit the product Wiki.
